SDP 2300 DLX is a Pillar type single cutter is a successful model of SDP Machines running from more than 2 decades. Available in many variants according to blade size or height of cutting. Single Cutter is a 2 axis , vertical cutting machine with orthodox counter-timer panel, robust structure and Cast & Casting body.
| TECHNICAL PARAMETER | UNIT | MODEL | |||
|---|---|---|---|---|---|
| DELUXE 2.5 | DELUXE 3.0 | DELUXE 1.35 | DELUXE 1.6 TO 1.8 | ||
| Max. blade diameter | mm | 2500 | 3000 | 1350 | 1800 |
| NO. of blades | pc | 1 | 1 | 1 | 1 |
| Total power installed | hp | 40 | 50 | 25 | 30 |
| Max. cutting length | mm | 3600 | 3600 | 2400 | 3000 |
| Max cutting height | mm | 1000 | 1300 | 500 | 650-750 |
| Overall Machine dimensions | mm | 8300x5000x4900 | 8900x5000x5500 | 5500x3500x3800 | 7000x4500x4500 |

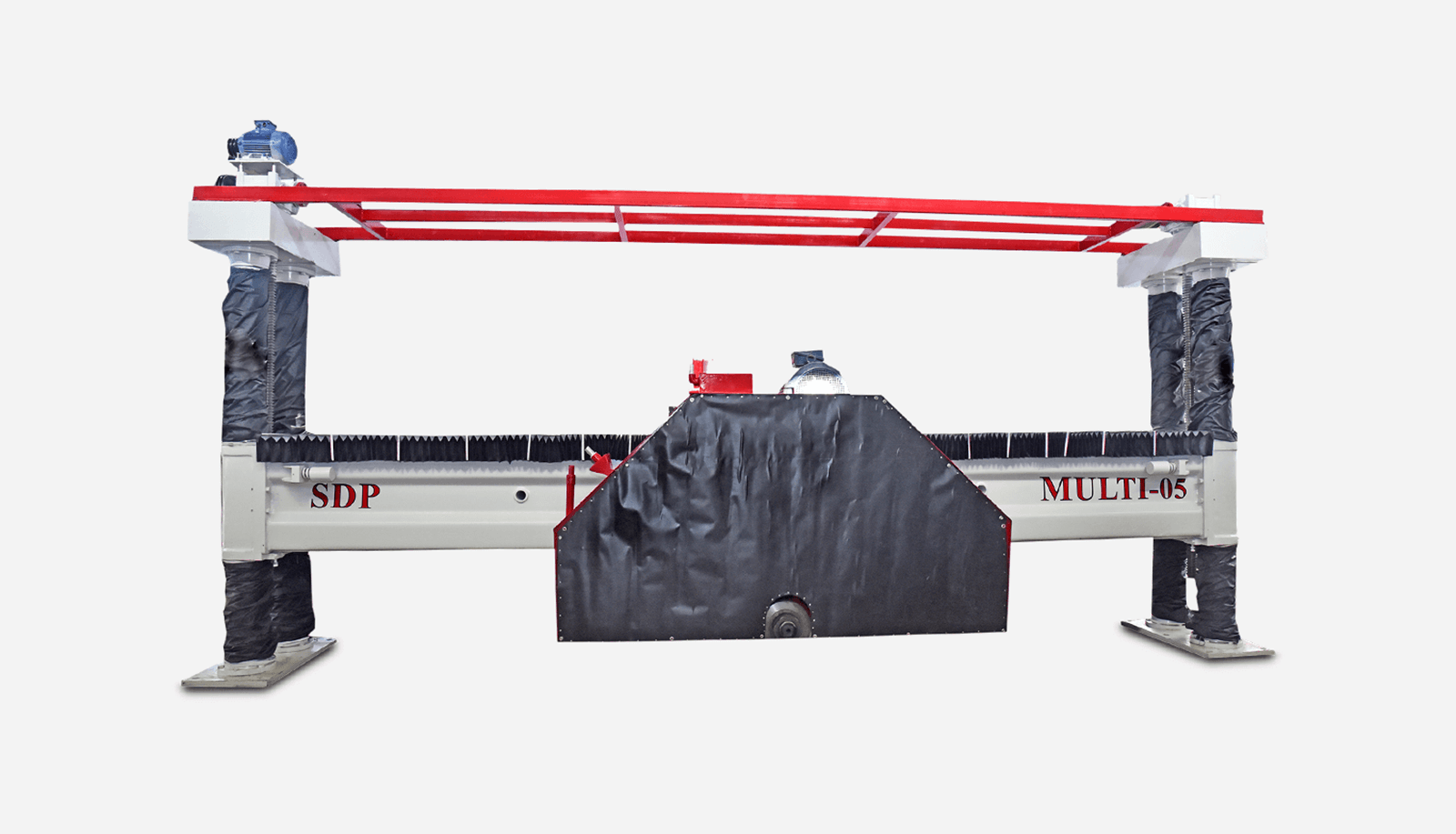

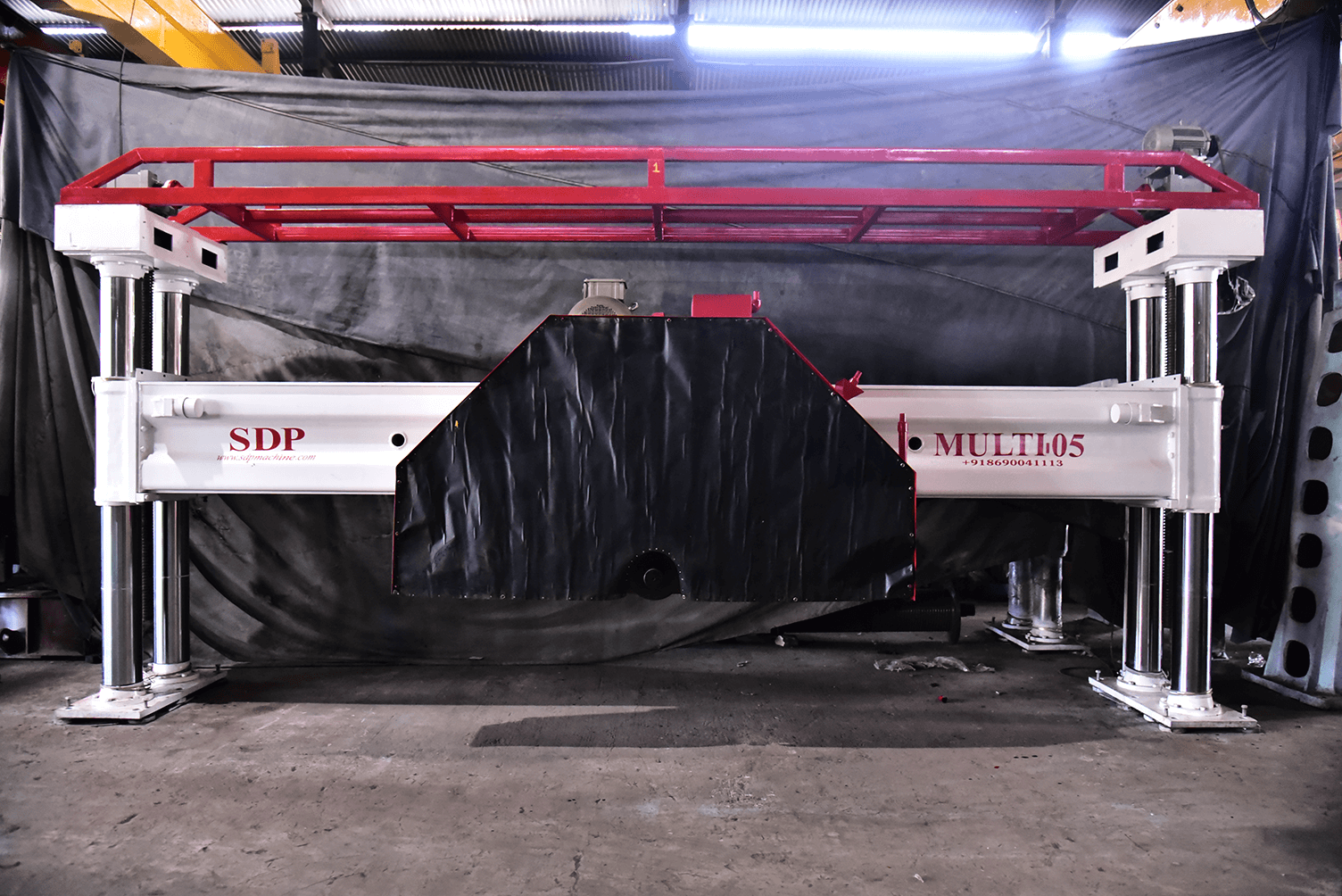

SDP 2300 M-05 is a Pillar type multi blade block cutting machine (Multi Cutter Machine for Granite) for cutting block into slabs with multi-blade combination. This machine is the ideal equipment for producing large quantity of slabs. This is specially designed multi cutter machine for granite in India. Total cast iron construction structure enable this very sturdy machine of NO vibration during cutting, hence to maximize its cutting accuracy.
Salient Features
| TECHNICAL PARAMETER | UNIT | MODEL |
|---|---|---|
| MULTI – 05 DLX | ||
| Max. blades diameter | mm | 2500 |
| No. of blades | pc | 5 |
| Main motor power | hp | 50 ( 1440 ) |
| Max.cutting sizes | mm | 3600 X 1050 X 2000 |
| Overall Machine dimensions | mm | 7000 x 2000 x 3500 |
| Max vertical stroke | mm | 1250 |
| Beam Length | mm | 6000 |
A leading manufacturer of a wide range of Stone Processing Machines since many years, SDP Machines is a well established name in the stone industry.
